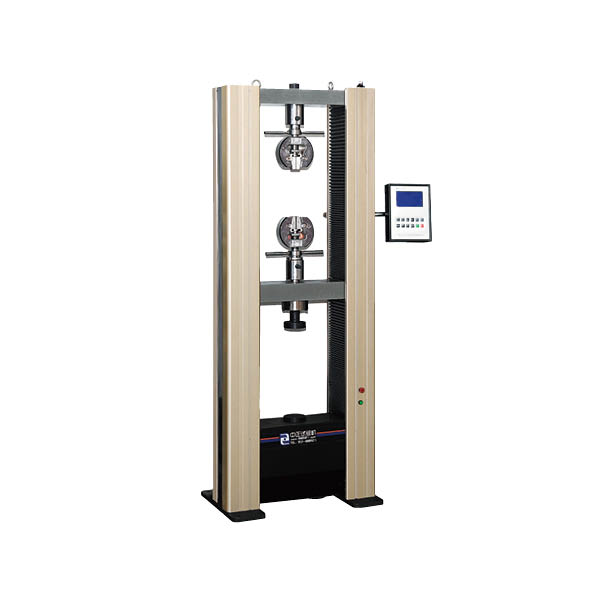

Digital Display Mechanical Testing Machine 0.01N Minimum Resolution On The Testing Force WDW-S Series

Brand Name : MITECH

Model Number : WDW-S series

Place of Origin : China Beijing

MOQ : 1

Payment Terms : T/T, Western Union , Paypal

Supply Ability : 500units per month

Delivery Time : 5-8work days

Packaging Details : Standard export carton

Structural form : Gate type

Operation mode : Liquid crystal display control

Force measuring range : 2%-100% of the maximum testing force

Relative error on indicated values of testing force : Better than ±1%of the indicated value

Error on deformation display : ±1% (or±0.5%)

Minimum resolution on the testing force : 0.01N

Precision on beam displacement : ±1%（±0.5%）

Deformation accuracy : Better than ±1% (or±0.5%)

Speed governing range : 1-200

Testing travel : ﹥600 mm (it can be customized According to the customer needs)

Power supply : 220 V

Contact Now

Product Application

WDW-S series Digital display electronic universal testing machine is applicable for tensile test of rubber, plastic, textile fabrics, waterproofing materials, electric wire and cable, net ropes, metal wire, metal bars and metal plates. By adding auxiliary appliances, compression and bending tests can be conducted via it. It has the following functions: digital display of testing force, continuously adjustable testing speed, automatic shutdown at specimen put-off and peak value holding. It is the necessary professional precision instrument for improving the production efficiency and qualification rate as well as saving cost.Digital Display Mechanical Testing Machine 0.01N Minimum Resolution On The Testing Force WDW-S Series

Function features

  1. High-precision and fully-digital speed governing system and precision reducing gear are adopted to drive the precision screw unit to carry out the test, achieving large-range adjustment of the testing speed as well as low noise and stable operation during the test.

  2. Operation mode of touch keys and real-time display of the liquid crystal display. The display interface can display interfaces for selection of test methods, selection of test parameters as well as test operation and result display conveniently and efficiently.

  3. It can achieve the quick or slow beam lifting adjustment when mounting and clamping the specimen and has the function of overload protection.

  4. Matching controllers can be selected and connected externally.


Technical Parameters

Structural form


Single-arm type


Maximum testing force (KN)

005

01

02

05

1

2

3

5


Operation mode


Liquid crystal display control


Force measuring range


2%-100% of the maximum testing force


Relative error on indicated values of testing force


Better than ±1%of the indicated value


Error on deformation display


±1% (or±0.5%)


Minimum resolution on the testing force

0.01N


Precision on beam displacement

±1%(±0.5%)



Better than ±1% (or±0.5%)


Speed governing range

0.01-300 mm/min or 0.01-500 mm/min


Testing travel


﹥600 mm (800mm selected)


Testing space adjusting mechanism


Stepping motor or AC servo motor, synchronization with drive


Appearance


As per GB/T2611


Protection function


Overload protection, limit protection.


Power supply

220 V


Weight (approximate kg)

100


Operating conditions


Ambient temperature -35°C, humidity 20% - 80%


Clamp form


Suitable clamps will be configured according to the customer requirements. Special clamps can be customized for the customer.


Note: This parameter list is only for information and is subject to change without notice. The real objects prevail for the products of our company.


Digital Display Mechanical Testing Machine 0.01N Minimum Resolution On The Testing Force WDW-S SeriesDigital Display Mechanical Testing Machine 0.01N Minimum Resolution On The Testing Force WDW-S Series
